Essential details
- Type:
-
medium servo
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
Corona
- Model Number:
-
DS329MG
- Size:
-
32.5x17x34.5mm(1.28"x0.67"x1.36")
- Weight:
-
32g
- Operating Voltage:
-
4.8V / 6.0V
- Operating Current:
-
300mA / 400mA
- Stall torque:
-
3.8kg.cm / 4.5kg.cm
- Dead band:
-
≤3uSec
- Potentiometer:
-
5 slider/Indirect Drive
- Ball bearing:
-
MR106
- Gear:
-
Metal
- Connector wire length:
-
300mm
- Power:
-
Battery
- Material:
-
Plastic
- Plastic Type:
-
ABS
- Scale:
-
1:10
- Radio Control Style:
-
RC Hobby
Supply Ability
- Supply Ability
- 3000 Piece/Pieces per Day
Packaging & delivery
- Packaging Details
- one pieces per color box packing
- Port
- Shanghai
- Lead time:
-
| Quantity(pieces) | 1 - 100 | 101 - 500 | 501 - 1000 | >1000 |
| Lead time (days) | 3 | 7 | 10 | To be negotiated |
Product Description
| Item No | DS329MG |

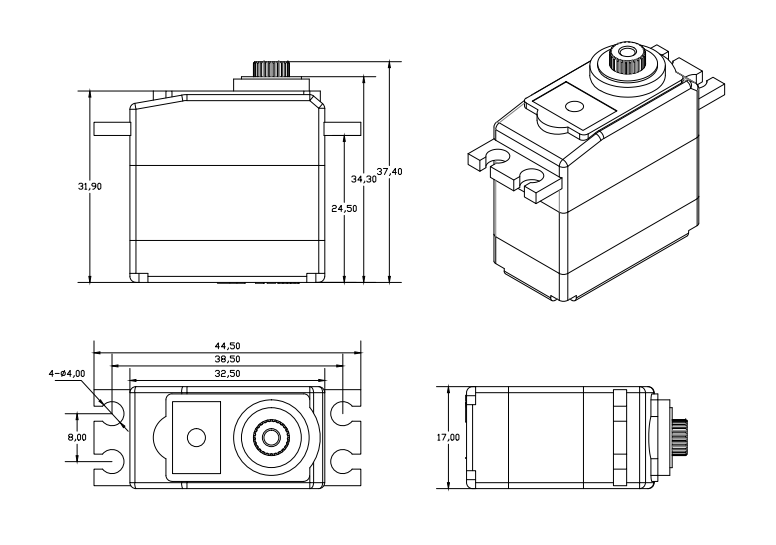

| Size | 32.5x17x34.5mm(1.28"x0.67"x1.36") |
| Weight | 32g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.11sec.60º/ 0.12sec.60º |
| Stall torque | 3.8kg.cm / 4.5kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | 5 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Connector wire length | 300mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
